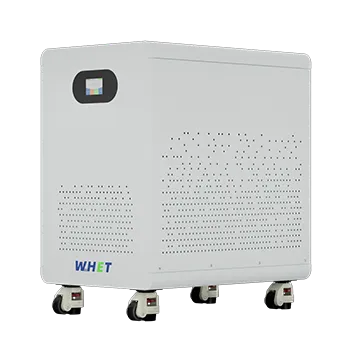

WhetEnergy 51.2V 840Ah LiFePO₄ Wheeled Energy Storage Battery - 43.008 kWh (WP-512840)
Intro Paragraph
Designed for applications that demand extended runtime and high continuous power, the WP-512840 delivers 43.008 kWh of reliable energy storage in a single mobile cabinet. Featuring triple-parallel 280Ah modules (16S3P) and a PACE 300A BMS, it reduces the need for multiple cabinets, cuts down on complex cabling, and supports deep communication with mainstream 48V inverter systems.
Application-First Positioning
- Off-grid commercial sites - Run longer without generator backup.
- Large residential estates - Power heavy household loads with fewer modules.
- Mobile & trailer-based systems - Reduce setup time with a single-cabinet design.
- Backup for critical loads - Longer autonomy during extended outages.
Performance Highlights
1) Massive Single-Cabinet Capacity
- Feature: 16S3P configuration using premium 280Ah cells, totaling 840Ah.
- Benefit: Delivers 43.008 kWh in one unit, minimizing the number of parallel connections and potential failure points.
2) High-Power Ready
- Feature: PACE 300A BMS with CAN/RS485, supporting sustained high current output.
- Benefit: Ideal for inverter systems requiring stable delivery at 10 kW+ continuous power.
3) Reduced System Complexity
- Feature: One cabinet replaces multiple smaller modules; fewer interconnect cables and breakers.
- Benefit: Simplifies installation, lowers maintenance overhead, and improves system reliability.
4) Optimized Thermal Control
- Feature: End-plate compression (~700 kg) per module, steel-belt conduction, and strategically placed venting.
- Benefit: Maintains uniform temperatures across cell banks, extending cycle life.
5) Mobility Without Compromise
- Feature: Heavy-duty Foma wheels, reinforced chassis, balanced center of gravity.
- Benefit: Easy relocation for site changes or mobile power needs without sacrificing safety.
6) Flexible Cell Sourcing
- Feature: Available with Hithium, CORNEX, EVE, SVOLT, GOTION, GANFENG cell options.
- Benefit: Allows customization for budget or premium performance requirements.
Technical Specifications
Energy Calculation: 51.2 V × 840 Ah = 43.008 kWh
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2 V (16S LiFePO₄) |
| Nominal Capacity | 840 Ah |
| Nominal Energy | 43.008 kWh |
| Cell Configuration | 16S3P (280Ah cells × 3 parallel) |
| BMS | PACE 300A (Bluetooth/Wi-Fi optional) |
| Continuous Discharge | Up to 200–300 A (depending on setup) |
| Operating Temp | -20°C ~ +55°C |
| Storage Temp | -5°C ~ +35°C |
| Cabinet Design | Single enclosure with venting, steel-belt compression, Foma wheels |
| Protection Level | IP54 (customizable) |
| Certifications | CE / UN38.3 / UL1642 / IEC62133 (family series) |
Inverter Integration
Compatible with low-voltage (48V) inverter platforms from major brands: Victron, GoodWe, Growatt, Voltronic, Schneider, etc.
Supports CAN/RS485 communication protocols for direct BMS-inverter integration.
Optional Bluetooth/Wi-Fi modules for local and cloud-based monitoring.
Reasons to Choose WP-512840
Maximum Energy in One Unit - 43 kWh capacity reduces parallel units.
Lower BOS (Balance of System) Cost - Fewer cables, breakers, and rack hardware.
Designed for High Loads - Perfect for projects exceeding 10 kW continuous.
Reliable Thermal Engineering - Maintains performance even in demanding duty cycles.
Customizable Build - Select cell brand, BMS options, and mechanical features.
FAQ
Q1: How is this different from the WP-512560 model?
A: The WP-512840 uses a 16S3P configuration (840Ah) instead of 16S2P (560Ah), delivering ~50% more energy per cabinet. It's designed for higher autonomy and reduced parallel counts.
Q2: Can it handle heavy motor loads or startup surges?
A: Yes, the PACE 300A BMS supports high surge currents for short durations. We recommend confirming your inverter's surge capacity for best results.
Q3: What is the expected cycle life?
A: Over 8,000 cycles at 80% DOD with premium 280Ah cells; actual performance may exceed rated specs.
Q4: Is transport and installation difficult due to weight?
A: While heavier than the 560Ah model, the reinforced wheeled design and balanced structure make site handling straightforward.
Q5: What lead time should I expect?
A: Typical production and delivery range from 20–45 days, depending on cell brand and customization.
Download & Contact
Datasheet: Available upon request, including dimensions, full specs, and certification details.
Quote Request: Email ula@whepower.com or use our web form; specify market, quantity, and customization needs.
