Hey there! As a supplier of 48V Lifepo4 Marine Batteries, I often get asked about how to balance the cells in these batteries. It's a crucial aspect that can significantly impact the performance and lifespan of your battery. So, let's dive right in and explore this topic.
Understanding the Basics of Cell Balancing
First off, why do we need to balance the cells in a 48V Lifepo4 marine battery? Well, in any battery pack, individual cells can have slight variations in their capacity, internal resistance, and self - discharge rate. Over time, these differences can cause some cells to charge or discharge at different rates than others. If left unaddressed, this can lead to a situation where some cells are over - charged or over - discharged, which is bad news for the battery's health and can even pose a safety risk.
A 48V Lifepo4 battery is typically made up of multiple 12V or 3.2V cells connected in series and parallel combinations. For example, a common configuration for a 48V battery might be 16 3.2V cells connected in series. Each cell should ideally have the same voltage and state of charge (SOC) to ensure the battery operates efficiently.
Methods of Cell Balancing
There are two main types of cell balancing: passive balancing and active balancing.
Passive Balancing
Passive balancing is the simpler and more cost - effective method. It works by using resistors to dissipate excess energy from the cells with a higher voltage. When the battery is charging, if one cell reaches its full charge voltage before the others, the passive balancing circuit will shunt some of the current through a resistor, effectively bleeding off the excess energy.
The main drawback of passive balancing is that it's relatively slow. It can also generate a fair amount of heat, which isn't ideal in a marine environment where space is often limited and heat management can be a challenge. However, it's a good option for smaller battery packs or applications where cost is a major concern.
Active Balancing
Active balancing, on the other hand, is a more sophisticated approach. Instead of dissipating excess energy, active balancing circuits transfer energy from cells with a higher SOC to those with a lower SOC. This can be done using techniques like DC - DC converters or inductive coupling.
The advantage of active balancing is that it's much faster and more efficient than passive balancing. It can also help to equalize the cells more precisely, which is great for maximizing the battery's capacity and lifespan. However, active balancing circuits are more complex and expensive to implement.
Steps to Balance Cells in a 48V Lifepo4 Marine Battery
Now that we know the different types of balancing, let's look at the steps you can take to balance the cells in your 48V Lifepo4 marine battery.
Step 1: Check the Battery's State of Charge
Before you start the balancing process, it's important to know the current state of charge of your battery. You can use a battery management system (BMS) or a multimeter to measure the voltage of each individual cell. Make a note of the voltages, as this will give you a baseline to work from.
Step 2: Choose the Right Balancing Method
Based on your battery's size, budget, and performance requirements, decide whether passive or active balancing is the best option for you. If you're using a pre - built battery pack, it may already come with a BMS that includes a balancing function. In this case, you'll want to make sure the BMS is working properly.
Step 3: Connect the Balancing Equipment
If you're using an external balancing device, connect it to the battery according to the manufacturer's instructions. This may involve connecting wires to the individual cells or to the battery terminals. Make sure all connections are secure to avoid any short circuits.
Step 4: Start the Balancing Process
Once everything is connected, start the balancing process. If you're using passive balancing, the process may take several hours or even days, depending on the degree of imbalance in the cells. With active balancing, the process is usually much faster.
Step 5: Monitor the Balancing Process
Keep an eye on the voltage of each cell during the balancing process. You can use a BMS or a multimeter to check the voltages at regular intervals. As the cells balance out, the voltage differences between them should decrease.
Step 6: Stop the Balancing Process
Once the voltage differences between the cells are within an acceptable range (usually around 0.01 - 0.02V), you can stop the balancing process. Disconnect the balancing equipment and make sure all connections are removed.
Importance of Regular Cell Balancing
Regular cell balancing is essential for maintaining the health and performance of your 48V Lifepo4 marine battery. By keeping the cells balanced, you can extend the battery's lifespan, improve its capacity, and reduce the risk of over - charging or over - discharging.
In a marine environment, where the battery is often subjected to harsh conditions and frequent charging and discharging cycles, cell balancing becomes even more important. It can help to ensure that your battery is always ready to power your boat's electrical systems when you need it.
Our Battery Products

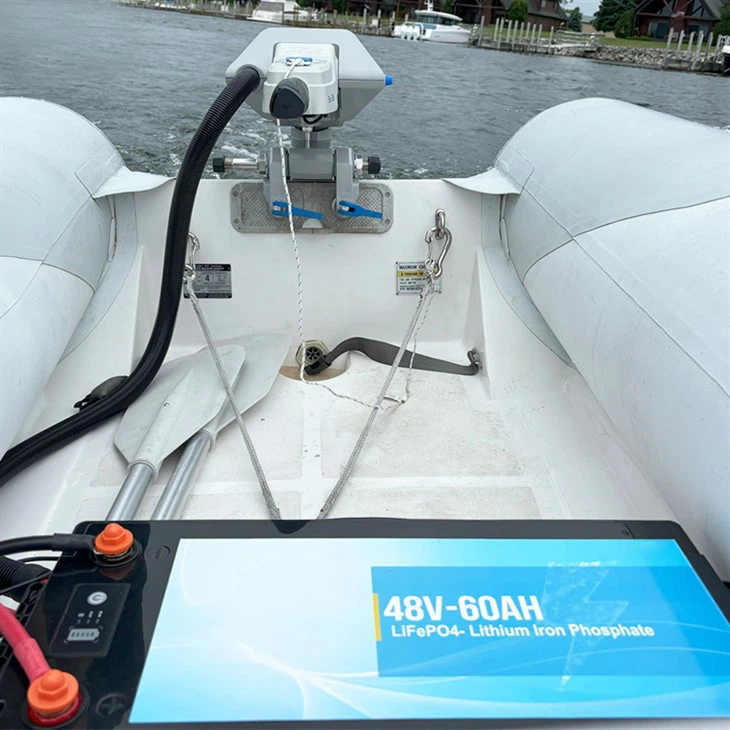

As a supplier, we offer a range of high - quality 48V Lifepo4 Marine Battery. Our batteries are designed with advanced BMS technology that includes both passive and active balancing options, depending on your needs. We also have 12V Lifepo4 Marine Battery and 24V Lifepo4 Marine Battery available for different applications.
If you're interested in learning more about our products or have any questions about cell balancing, feel free to reach out. We're here to help you make the best choice for your marine battery needs. Whether you're a boat owner looking for a reliable power source or a marine equipment manufacturer in need of high - performance batteries, we've got you covered.
Contact us today to start a discussion about your specific requirements, and let's see how we can work together to bring you the best 48V Lifepo4 marine battery solution!
